At a glance
Maximum recommended voltage rating
Maximum operating temperature
Grease-filled construction protects against corrosion

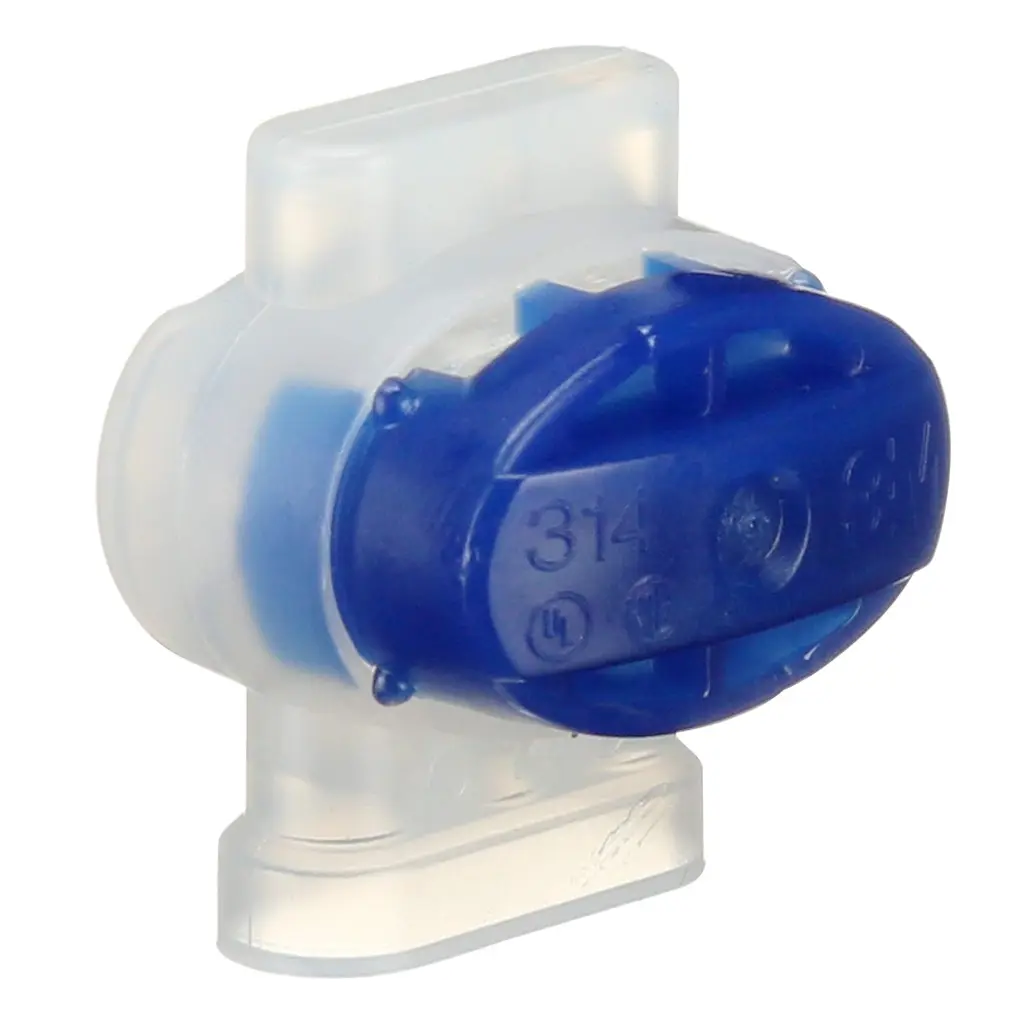

Blue cap, white body insulation housing
Self-stripping pigtail splice for tap and run wires

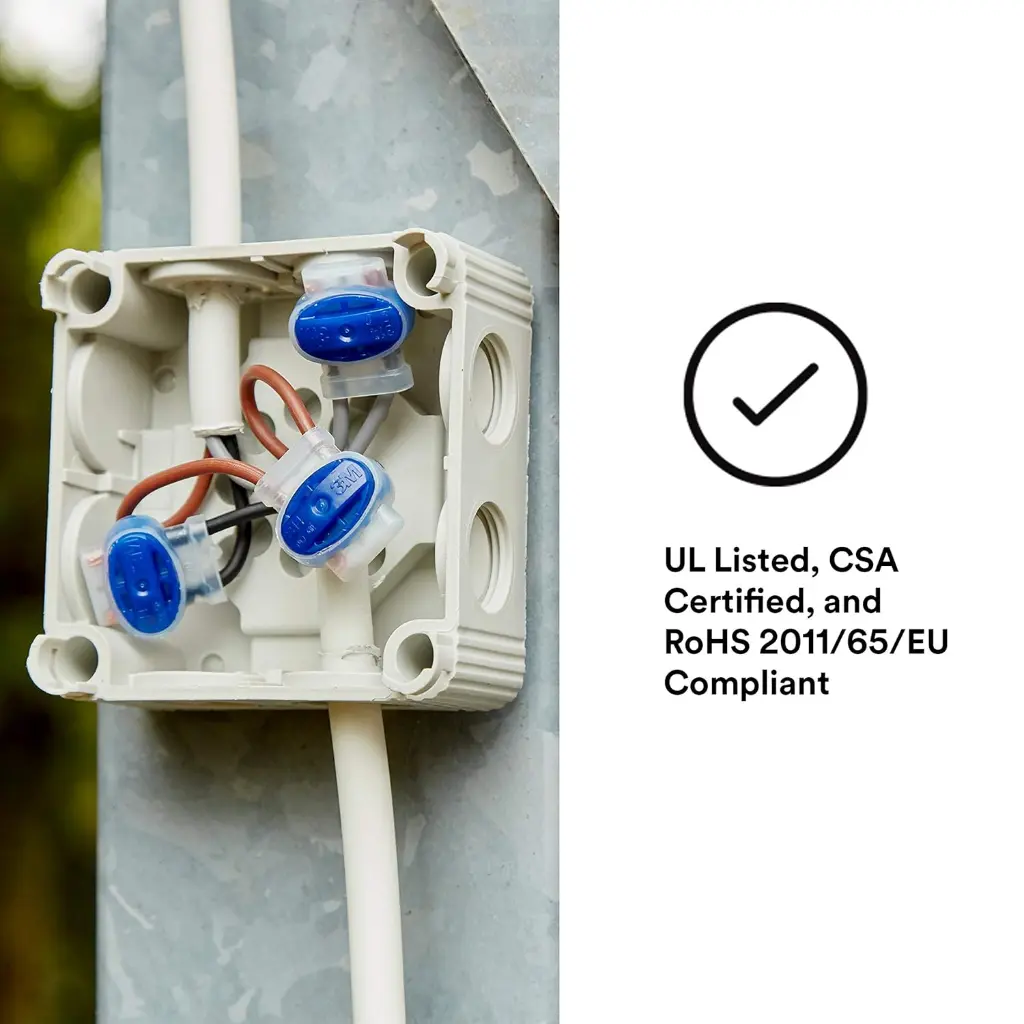

UL E23438, CSA LR15503 compliant
Connector details
- Connection type: pigtail splice (tap wire to run wire)
- Connector style: Insulation Displacement (IDC)
- Max. number of cores: 3
- Conductor sizes: 14 AWG - 22 AWG (2.5mm² - .34mm²)
- Insulation: nylon, cap blue / body white
- Max. insulation outer diameter: 0.15 in (~3.9mm run/tap)
Ratings & certifications
- Maximum recommended voltage rating: 600V
- Maximum operating temperature: 105°C (221°F)

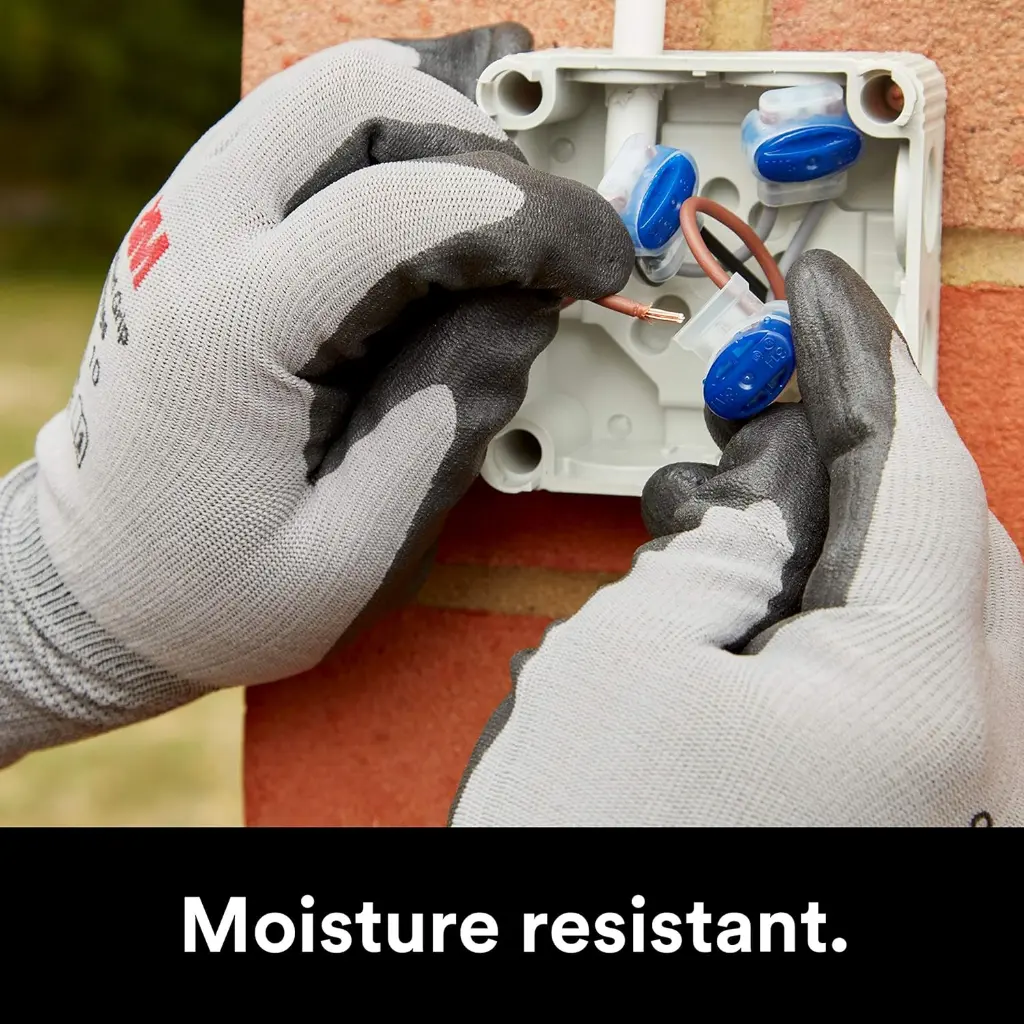

- Moisture resistant, grease-filled against corrosion
- Interrupt-free shifting: No
- CSA file number: LR15503
- UL file number: E23438
- Recommended tool: 3M Scotchlok E-9BM crimping tool, or mechanics (slip-joint) pliers

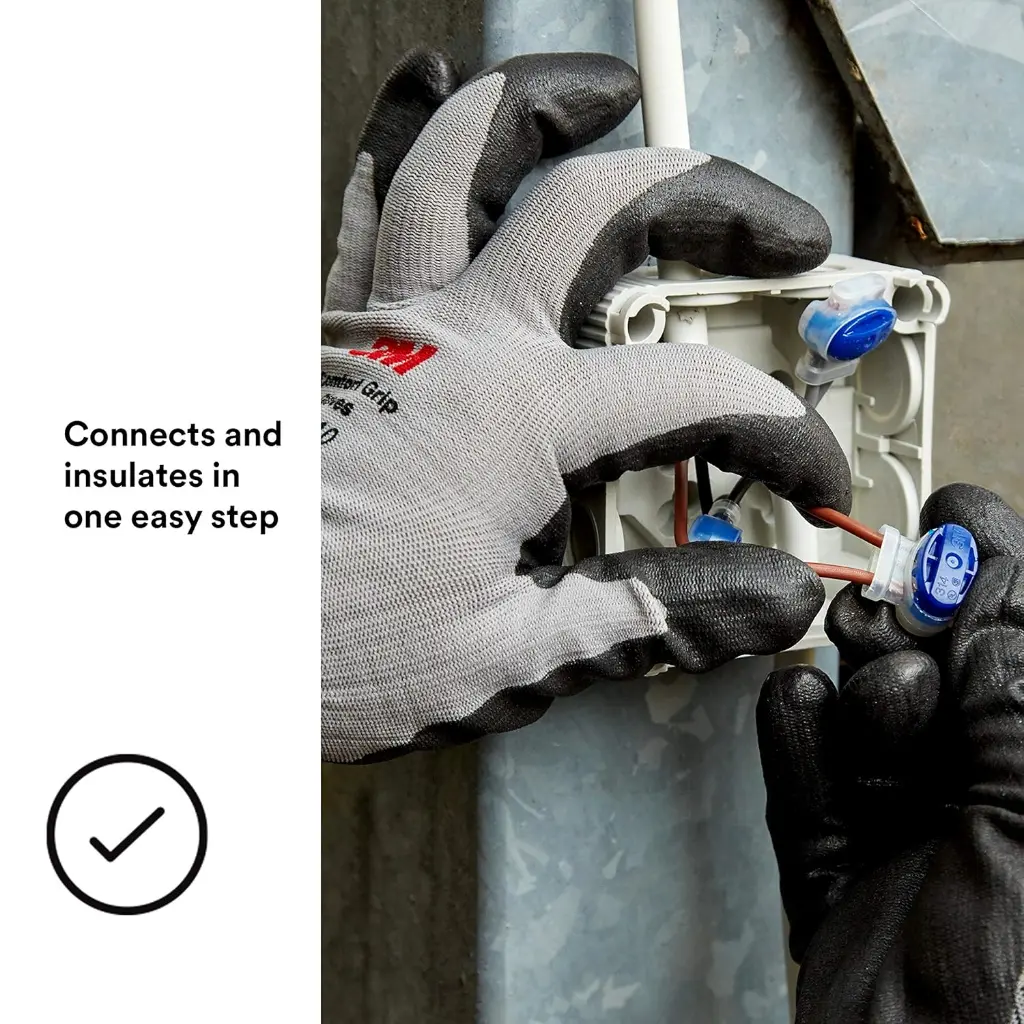

This 3M Scotchlok electrical insulation displacement connector electrically connects a (tap) wire end to a through (run) wire and insulates the connection. It's flame retardant and used for tap and parallel splicing. This connector features a maximum insulation outside diameter of 0.145 inches (3.5mm).
It's rated at 600 volts and features an insulation temperature rating of 194 degrees Fahrenheit (90 degrees Celsius).
The suggested application tool for this 3M Scotchlok electrical insulation displacement connector is the 3M Scotchlok crimping tool, E-9BM. UL listed, CSA certified and RoHS 2011/65/EU compliant.
